FALT SOLAR
BY ROOFIT.SOLAR

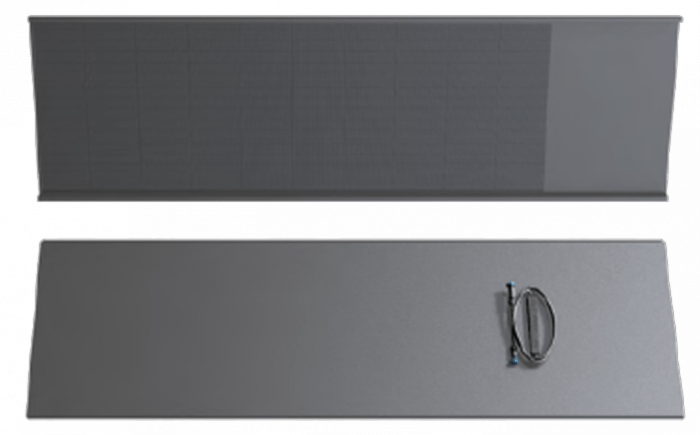

FALT SOLAR by Roofit.Solar modules are an expertly crafted combination of sleek black metal roof panels and high-tech photovoltaic cells – with a power capacity up to 160 W.

It is one of the most durable & aesthetical SOLAR solutions.

Our solar roof panels are a 2-in-1 building-integrated photovoltaic (BIPV) solution for residential and commercial houses.
Thanks to the nearly invisible integrated solar cells, our roofs are often accepted by authorities as protected and heritage buildings.

The high-tech monocrystalline solar cells provide stellar performance even in low-light conditions. The sleek vertical lines of a classy black roof will give your house an aesthetic look and blend seamlessly with any neighbourhood.

THE PERFECT SOLAR ROOF

METAL ROOF & PV MODULE

Probably one of the most aesthetic 2-in-1 solar roof solutions on the market, with high mechanical load resistance

SUPERIOR WARRANTY

Highest standards with 25 Years of warranty, strictly positive power tolerance and outstanding low light performance

IDEAL FOR HISTORICAL BUILDINGS

Suitable for all types of new constructions, renovations of sloped roofs and facades, and ideal for protected buildings

Technical Information

  • Profile Type
    Falt
  • Material
    Pre-painted steel sheet
  • Useful with (mm)
    540
  • Available thickness (mm)
    0,5
  • Weight (Kg/m²)
    15,5
  • Cells
    Mono PERC
  • Efficiency (W)
    160
  • Minimum zinc coverage (g/m²)
    275
  • Exterior paint coating-Glossy (µm)
    PUR50
  • Corrugation (wave) height (mm)
    27
  • Minimum slope (°)
    10
  • Fire safety
    CLASS A
  • Hail Test (km/h)
    165,5
  • View from the front – overlapping area – pv layer

Warranty & Certificates

  • First year
    >97,5% of nominal power during the first year
  • Linear power warranty
    80% power output after 25 years
  • Product warranty
    10 years
  • IEC 6215
    Design qualification & type approval of terrestrial pv modules suitable for long-term operation in general open air climates.
  • IEC 61730
    Global standard for PV module safety qualification
  • IEC 62716
    PV Modules - Ammonia corrosion testing.
  • CEI 61701
    Salt mist corrosion testing of pv modules.

Colors

Glossy Pur

30 YEARS WARRANTY

Black

RAL RAL 9005 PUR

HOW TO INSTALL

FALT SOLAR by Roofit.Solar is a building-integrated photovoltaic (PV) product, that combines roof and solar panels into one (2-in-1), and is installed as easily as a regular standing seam roof.

Each FALT SOLAR module uses a ‘plug & play system to connect the cables, and with the help of our design software, each project will obtain a clear plan of how to connect the cables on the roof.

Finishing parts

  • Ventilated eaves closure

  • Ventilated reinforced hip ridge

  • Ventilated ridge support

SEE MORE ABOUT
OUR SOLAR ROOF
