RAINWATER SYSTEM METIGLA EDGE

METIGLA EDGE is a rectangular rainwater system created for modern roofs, where water drainage must be efficient, safe, and well integrated into the building’s architecture.

The minimalist design, the symmetrical shape of the gutter, and the uniformly developed accessories create a clean line on the façade and help make installation simpler and more predictable. The reinforced system contributes to stability in use, including in conditions of heavy rain, snow, or temperature variations.

Through its good collection capacity and controlled water flow path, METIGLA EDGE complements the roof with a modern, discreet, and visually coherent technical solution.

TECHNICAL INFORMATION

  • Material
    Pre-painted steel sheet
  • Available thickness (mm)
    0.60 - 1.20
  • Steel grade
    DX51 / DX52 / DX53 / DX54
  • Minimum zinc coverage (g Zn/m²)
    275
  • Paint coating thickness (µm)
    40 front / 40 back
  • RC class
    4
  • RUV class
    4
  • Warranty (years)
    15
  • Rainwater system Metigla EDGE - 140/80 mm

Rainwater system elements

COLORS

RAINWATER SYSTEM MATT

15 years

Anthracite grey

RAL 7016

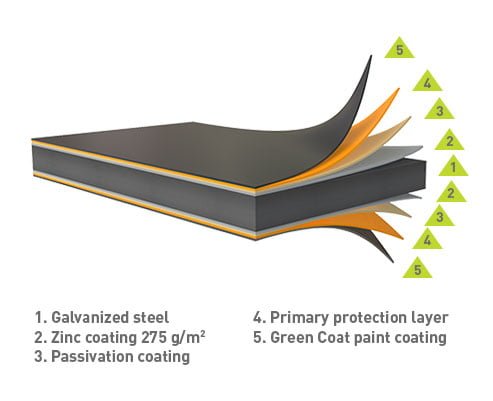

Steel type and structure

Metigla's rainwater system has both sides of the metallic sheet protected with passivated coating and covered with 35 μm polyurethane paint, whose texture offers high resistance to wear, scratches and high temperatures.

Accesories

  • Screws
